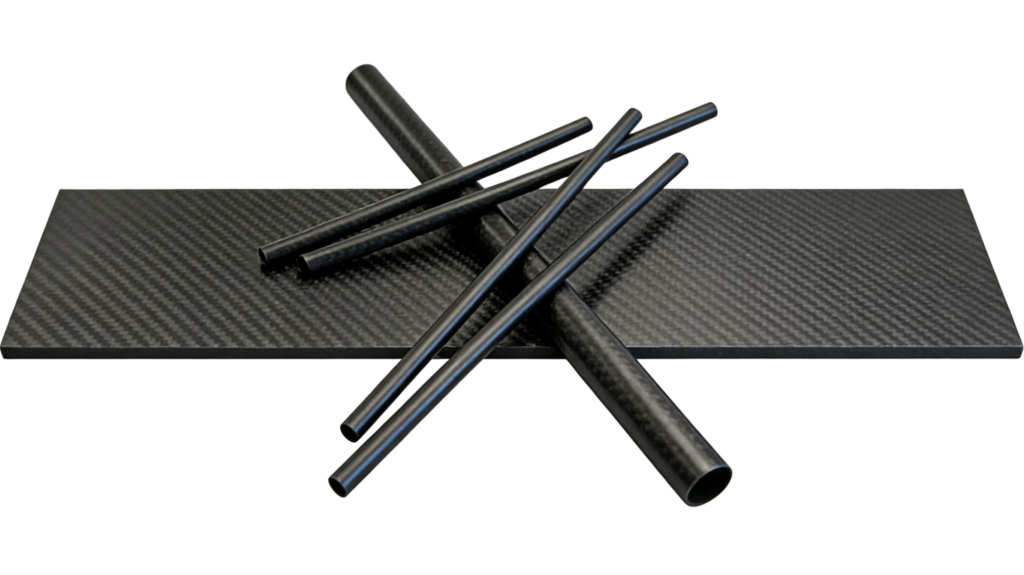

Relia Carbon Fiber Products – Precision Rods, Tubes & Panels

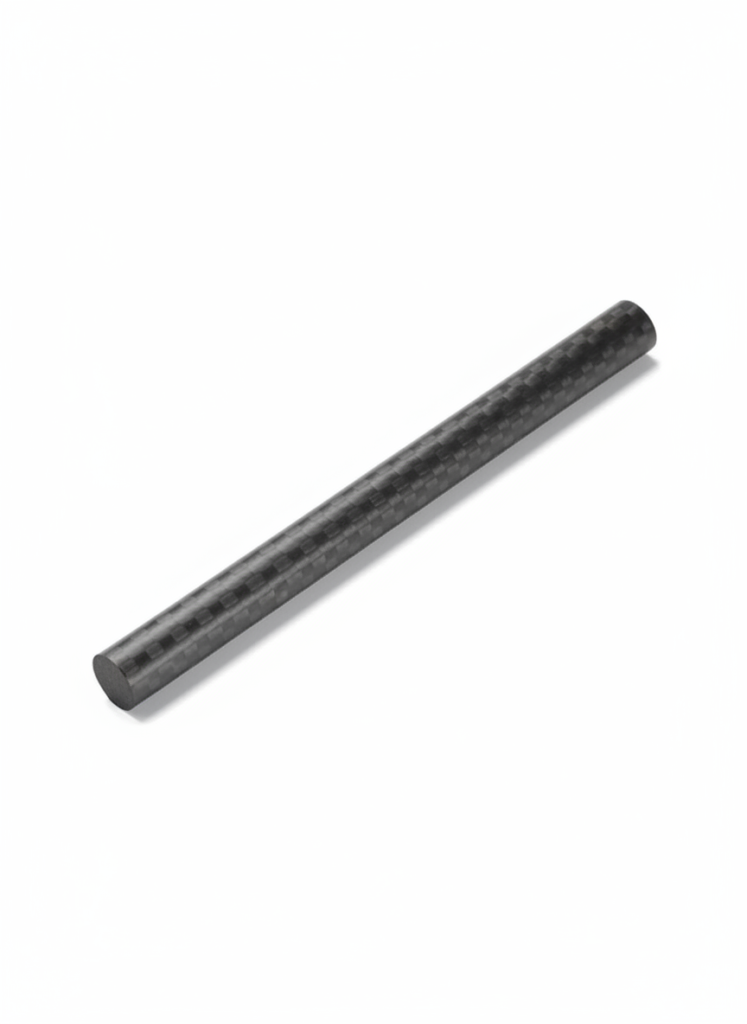

Relia Carbon Fiber Rods

Straight, Strong, Custom

Material: T300/T700/T800 carbon fiberepoxy resin
Diameter: 0.5mm – 50mm (customizable)
Straightness: ≤0.1mm/m Tensile strength: ≥3500MPa
Applications: Robotic arms, drone frames, medical prosthetics, test rods
Relia carbon fiber rods offer exceptional axial strength and ultra-high straightness, making them ideal for precision automation and weight-sensitive applications. Fully customizable in diameter, length, and fiber grade – with smooth surface finish and easy machinability.

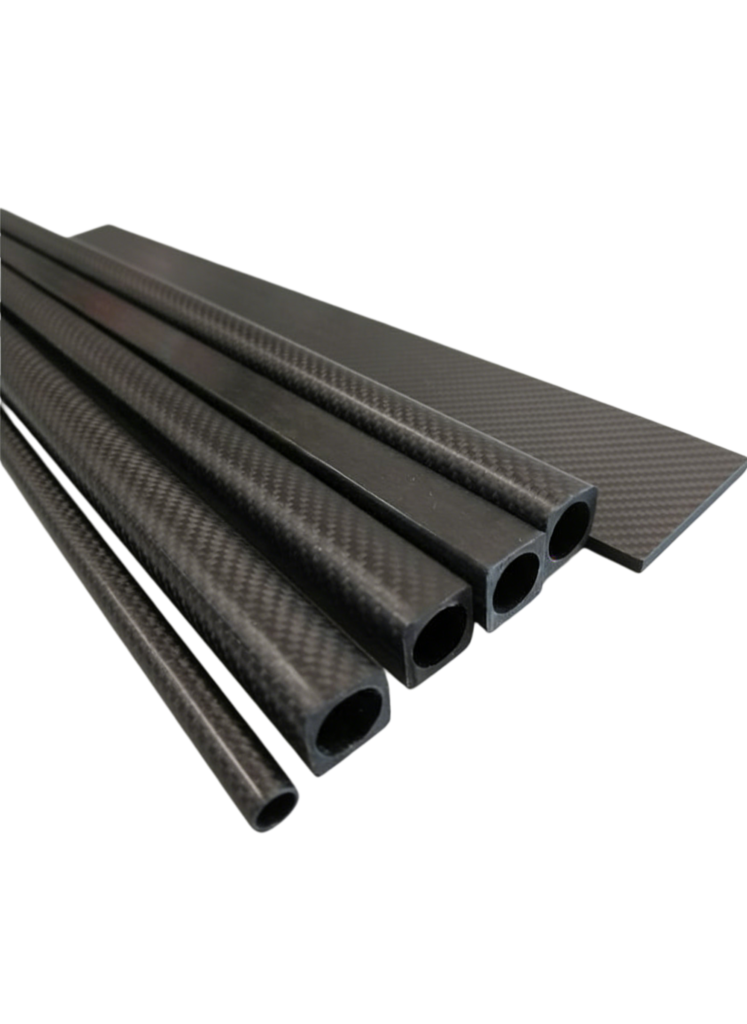

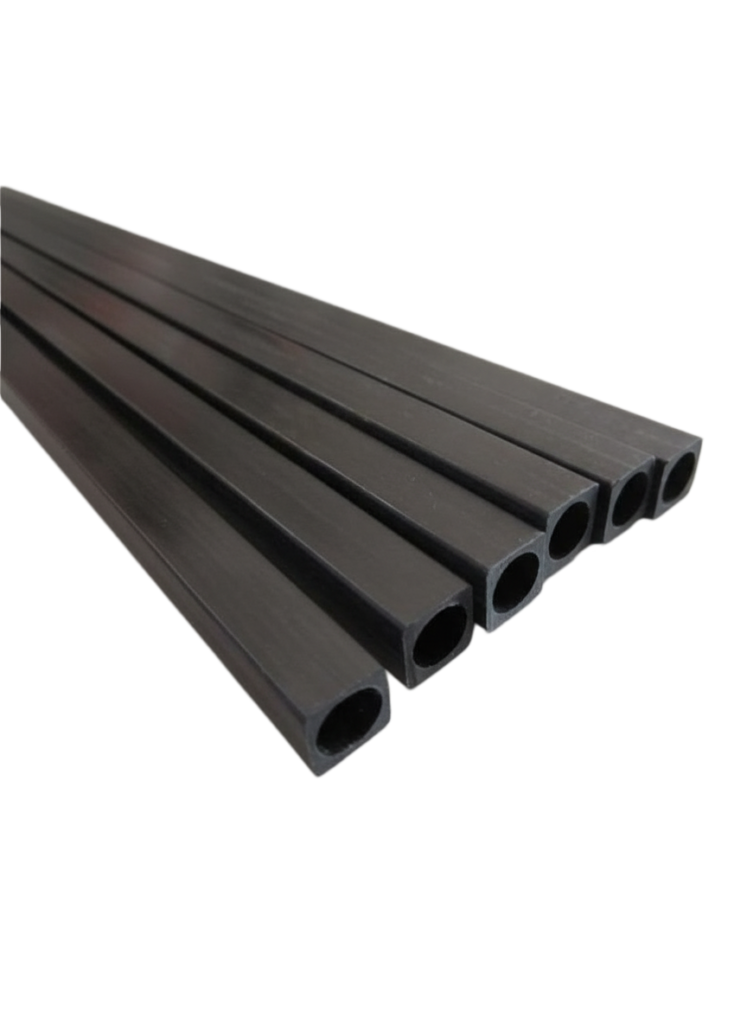

Relia Carbon Fiber Tubes

Lightweight Rigidity

Material: T300/T700/T800 carbon fiber, epoxy resin
Inner diameter: 2mm – 200mm (customizable)
Wall thickness: 0.2mm – 10mm Flexural modulus: ≥230GPa
Applications: Aerospace components, robotic arms, telescopic poles, bicycle frames
Relia carbon fiber tubes deliver high bending rigidity and impact resistance at a fraction of the weight of metal tubes. Available in round, square, or custom profiles – corrosion-proof and stable in extreme temperatures.

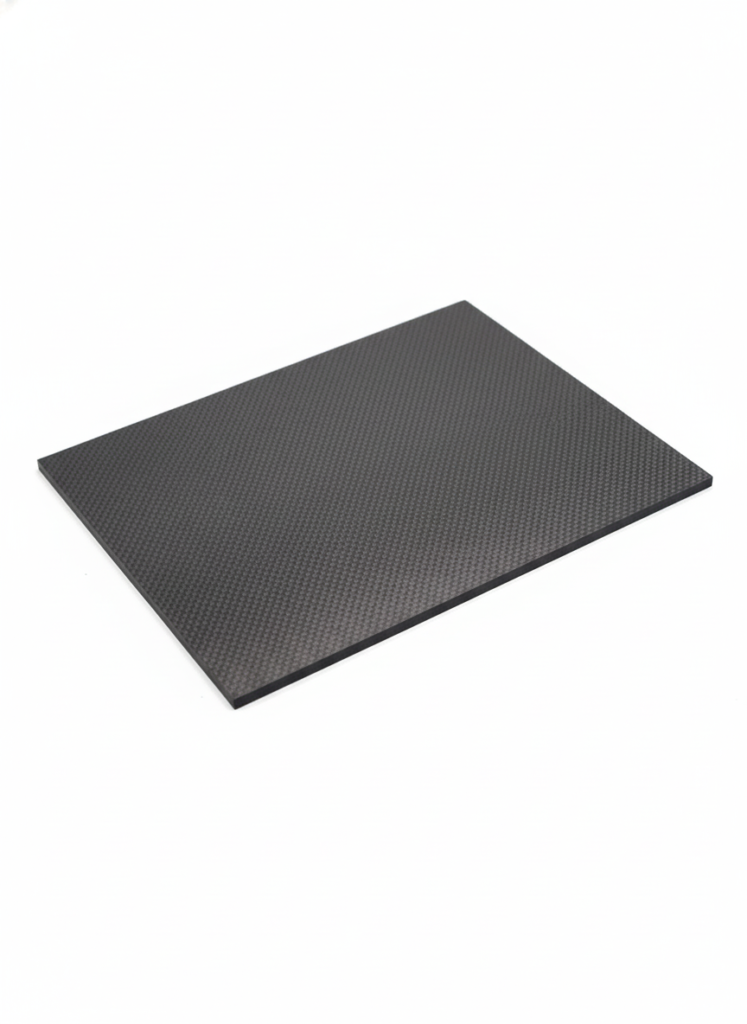

Relia Carbon Fiber Panel

Flat, Strong, Uniform

Material: T300/T700/T800 carbon fiber, epoxy resin
Thickness: 0.2mm – 50mm (customizable)
Size: Up to 1500×3000mm (customizable)
Flatness: ≤0.2mm/m
Applications: Structural panels, test fixtures, automotive components, medical equipment
Relia carbon fiber plates feature uniform thickness, excellent flatness, and high load capacity – perfect for structural and functional components in high-precision industries. Customizable in size, fiber orientation, and surface finish (matte/glossy).

Relia Custom Carbon Fiber Solutions

Fiber grade (T300/T700/T800/T1000) Layup orientation (0°, 90°, ±45°, custom) Size & dimensions (custom length/diameter/thickness) Surface finish (matte, glossy, sanded, painted) Machining (drilling, cutting, threading, milling) Resin type (standard epoxy, high-temperature, flame-retardant)Relia carbon fiber plates feature uniform thickness, excellent flatness, and high load capacity – perfect for structural and functional components in high-precision industries. Customizable in size, fiber orientation, and surface finish (matte/glossy).
